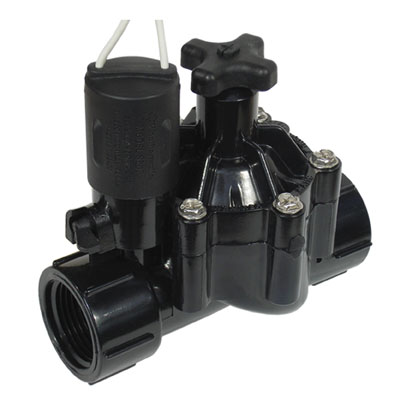

The Nitro N-100 Residential Solenoid Valve

The unique “reverse flow” design permits equal pressure distribution on both sides of the diaphragm, regardless of the line pressure, providing zero stress to prevent “stretching”, a common cause of valve failure.

Features:

  • 150 PSI rating.
  • Easy-to-use internal manual bleed level, bleeds valve downstream
  • Marine-grade S20P solenoid with stainless steel actuator.
  • 100% Water Tested.

1. DURABLE MATERIAL

  • 100% virgin material gives the nitro added strength over conventional PVC valves
  • Hydrostatic test prove Nitro resistance to cracking at over 700 psi

2. EASY ACCESS COVER

  • Combination hex, slot and Philips retaining screws provide multiple access options and superior operation up to 150 psi
  • Nitro installers will tell you they rarely need to open a Weathermatic valve

3. UNMATCHED MANUAL BLEED

  • Send the Nitro into action by simply pulling the trigger
  • It's the easiest, driest internal manual bleed in the business that won't flood the valve box
  • No twisting on a solenoid or bleed screw is required

4. SHOCKING SHOCK CONE

  • The Nitro puts the hammer to water hammer by incorporating a cone-shaped diaphragm base
  • The shock cone interrupts the water flow more gradually than other diaphragms to enabl quick valve closure without the damaging effect of water hammer

5. MULTIPLE CONNECTION CONFIGURATIONS

  • Choose between 3 connection configurations: threaded, slip and male barb

6. PRESSURE ACTIVATED DIAPHRAGM

  • Pressure activated diaphragm ensures reliable operation with no leakage at pressures up to 150 psi

7. 5 YEAR TRACK RECORD

  • The Nitro track record shows less than a fraction of 1% return rate over 5+ years of reliable performance

8. AMAZING VALVE FOR THE PRICE!

  • Seasoned installers know that valves are the last place to cut expenses when just one call-back eliminates any cost savings on the job
  • Plus, the Nitro makes it easy - you can install the commercial quality of a Weathermatic valve at a residential valve price!

9. REVOLUTIONARY REVERSE FLOW DESIGN

The Weathermatic hallmark reverse flow design with a 45-year track record bring you:

  • Reverse flow design means that valve fails shut rather than open in the event of diaphragm failure, unlike conventional forward flow valves that fail open
  • Balanced pressure on the diaphragm extends valve life over forward flow valves
  • Self-cleaning function is achieved as diaphragm actually flexes during operation to send dirt and debris down the line without the maintenance worry of filters and screens
